How Artisanal Snooker Tables Are Built

A proper snooker table is a stone bed wearing wooden clothes. On a full-size table, five slate sections weighing about 166 kg each rest on a rigid, braced timber frame, get leveled until a straightedge reads almost nothing, and get wrapped in cloth that runs one defined direction. Then the house gets a vote: the doorway, the hallway corner, the floor underneath, and enough room for a full-length cue to swing.

This article walks that build stage by stage, from material choices through the acceptance checks that prove a table is game-ready. At each stage the interesting part is the decision: which materials survive a room you never climate control, what the frame is actually for, where the pro line sits on slate day, and whether your room points toward building, commissioning, or buying something smaller. A few real numbers drive all of it, so they come first.

Key insights

• A full-size snooker table's playing area measures 3569 by 1778 mm, and one maker lists the 12 ft slate bed at 830 kg.
• The frame, not the slate, keeps the bed flat through seasons, so joinery, bracing, and adjustable leveling deserve the attention.
• Where a napped cloth is fitted, the smooth grain runs from the baulk end toward the black-spot end.
• Prove a table game-ready with matched frame diagonals, a near-zero straightedge read at every joint, and consistent rebound on every rail.
• Most rooms fit one of the ladder's lower rungs: re-cover a used table, commission one with a fitter, or buy a smaller size.

How Big Is a Full-Size Snooker Table, and Why Does It Decide Everything Else?

The numbers first, because they reset the planning. The WPBSA, the sport's worldwide governing body, uses its official equipment rules to define the full-size playing area as 11 ft 8.5 in x 5 ft 10 in (3569 x 1778 mm), measured between the cushion faces and held within 13 mm on both dimensions. The rail top sits 864 mm off the floor, again within 13 mm. The outer table runs larger than the playing area, because the rails and cabinet wrap around it, and every room measurement below should use the larger figure.

Weight is where most plans go sideways. One manufacturer's replacement slate specifications for a 12 ft x 6 ft table list the bed as five sections, 1.75 in (45 mm) thick, 830 kg of slate in total, or about 166 kg per slab. That is one maker's published figure for its own product, not a governing standard, though other retailers advertise slate thickness in the same range. Add frame, rails, cushions, cloth, and pockets, and a complete full-size table lands well over a tonne. Plenty of people plan the room at pool-table scale. This is not that.

Footprint and mass are why room decisions come before table decisions. Measure the delivery route before anything else: the front door, hallway width, stair turns, and the final doorway. A slate section is thin relative to its length, so a slab edges through a doorway better than its 6 ft length might suggest. Corners and stair landings are where deliveries die, and a slab cracked on a staircase is a much bigger bill than a wasted afternoon of measuring.

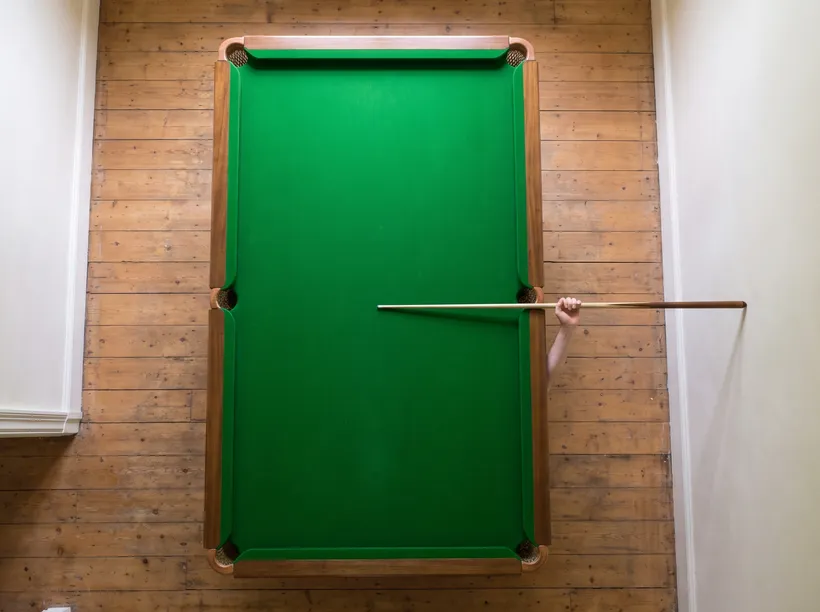

Then the cue. Stand where the table's center will go and swing a full-length cue in every direction. Where the arc crosses a wall, you either accept a shorter cue on shots off that rail or you choose a smaller table. The check costs a minute and prevents years of blaming the wrong thing for the same bad position.

The floor is the last room question, and it is the one people skip. A ground-floor room over a slab is the comfortable case. Upstairs, the question is the joist span in your house, and no specification sheet or article answers it, because houses are built differently. A builder or a structural engineer can answer it in one visit.

Put the arithmetic together and it points somewhere. A correctly sized room, a passable delivery route, and a floor that takes the weight all have to pass, which is why most full-size tables are bought or commissioned rather than built from raw materials. The rungs in between get sorted out at the end of this article. Smaller classes change the math, and the same listing puts a 10 ft x 5 ft slate bed at 45 mm thick and 100 kg per slab, a different conversation about doorways entirely.

Which Material Choices Decide Whether the Table Plays True?

Four material decisions do most of the work, and they do not carry equal weight. In order of importance: timber, slate, cloth, and the parts that hold everything together.

Timber sets the ceiling on everything else. Solid hardwood such as oak, maple, or mahogany resists dings and keeps cushion mounts true for decades. Engineered and laminated members hold their shape better when humidity swings, because glue layers resist the cupping that moves a solid board. In a garage or basement that never gets climate control, that second property earns more than the grain pattern. A practical hybrid takes each material where it works, hardwood at the rails and cushion mounts and laminated or engineered beams in the subframe.

Slate is the heart of the surface and the least negotiable line on a specification sheet. The full-size class already sets the target: five sections at about 45 mm. When you read a spec, confirm that the slabs are machined flat and that the thickness is stated as a number rather than an adjective. Thin slate needs closer support under the bed, and any flex between supports turns up as slow, wandering rolls long before anything looks visibly wrong.

Cloth is a tradeoff rather than a spec to win. Worsted wool plays faster and stays cleaner, with less fuzz to gum the surface up over a season of play. Wool-nylon costs less, and it is common on club tables for exactly that reason. Neither choice is wrong. The wrong choice is cloth that does not match how the table gets used, and you find that out slowly, one frame at a time.

Cushion rubber is where the jargon should stop working on you. Listings wave durometer numbers and profile codes around. What decides your rebound is whether the rubber profile is consistent end to end and seated without gaps along its backing. Soft or inconsistent rubber feels sloppy and returns angles nobody asked for, and it is the usual suspect when the bargain table plays dead after its first humid weekend.

Fasteners and adhesives close out the list, and they are not cosmetic. Stainless or brass belongs wherever humidity lives, on pocket irons, plate bolts, and anything below the rail line. Adhesives and bedding compounds must be rated for both slate and timber, or the bed and the frame start disagreeing after the first damp season.

One habit covers all of it. Let the slate and the timber acclimate in the room for a couple of days before final assembly. Materials move with temperature and humidity, and parts joined on delivery day sit differently by spring.

What Keeps the Bed Flat Through Seasons and Moves?

The frame has one boring, absolute job. It carries about 830 kg of stone in a single plane, keeps carrying it when the seasons move the timber, and lets the installer make small corrections afterward. Put a perfectly flat slate on a racked or warped frame and the table loses level anyway, because the stone only stays where the structure under it stays.

Two failure modes are worth naming, because their preventions differ. Racking is the frame folding out of square under load or a shove. Seasonal movement is timber swelling and shrinking until nothing sits where it sat in March. Both are cheap to prevent at build time and miserable to cure later.

Against racking, work with corner blocks glued and screwed at every joint, diagonal bracing where the legs meet the rails, and central stringers under the bed so no slab spans open air. Support spacing under the slate follows the slate maker's guidance for the slab size, not a rule of thumb remembered from another project.

Against movement, choose timber that holds its dimensions in an unheated room, seal the timber surfaces to slow moisture uptake, and fit adjustable feet or plan on steel shims during installation. Feet are the difference between a twenty-minute correction in year three and taking the table apart to re-true it. Plan bolt access the same way, before assembly rather than after, so a later adjustment does not require disassembly.

Joinery carries the load where the corners take the slate's weight. Mortise-and-tenon or dowelled joints, glued, hold their shape under decade-long loads. Bolt-through connections belong where something may need service later, and leg mounts should come apart without destroying anything around them. Where the slate bears on the frame, small neoprene or felt pads keep stone off hard timber directly and prevent the dead spots that make an otherwise true bed play wrong.

Then the check that catches racking before anything is fixed in place. Dry-fit the whole frame square with nothing glued or bolted down, measure both diagonals, and make them match. If the diagonals disagree, the frame is out of square, and no shimming downstream makes the slate forget it. Slate day is a bad time to learn geometry.

How Is a Heavy Slate Bed Installed and Leveled?

The arithmetic leads every time. In the full-size class, each slate section is about 166 kg, which makes every slab a hoist job or a four- to five-person lift depending on the move. It is also stone. It does not bounce, and an edge knocked on concrete chips. Plan the carrying path, clear it, and agree handholds and set-down points before anyone lifts anything.

Tools

• A long straightedge, 6 ft or longer, for proving flatness along each slab and across each joint.
• A spirit level or laser level for the coarse pass.
• Feeler gauges for reading the gaps a straightedge leaves.
• Clamps and wood shims or packers, for holding joints tight and taking up height differences at supports.
• Protective gloves and eye protection, since slate work punishes careless hands.
• Helpers or a hoist for every move, because a 166 kg slab is never a solo lift.

Materials

• The slate set itself, specified for the table size and five sections at the 12 ft class.
• Neoprene or felt pads for the slate's bearing points.
• Epoxy resin for joints and seam fills.
• Metal joining plates with bolts where the sections should come apart again, or steel dowels where they should not.
• Clean rags, because epoxy stays workable only until it is wiped.

With the kit gathered, the sequence runs in order.

1. Dry-fit everything bare on the frame. Check alignment, edge contact, and each seam, then mark position and direction on the underside of every section. Improvising with 166 kg in hand is not a method.
2. Set the bearing pads at the marked support points and confirm the frame still runs true. If the frame rocks at this stage, stop and shim the frame first, because any rocking accepted now becomes the finished table's character.
3. Join the sections. Metal plates and bolts underneath keep the seams serviceable. Epoxy and steel dowels make a permanent join. Tighten gradually and evenly and aim for flush everywhere, because one proud edge announces itself in every ball that crosses it.
4. Fill the seams. Mix the epoxy thin enough to run, work it into the seam, and wipe excess off the slate face as it appears. Let it cure, sand the fill level, and check it under the straightedge. A seam a fingernail still catches gets more sanding.

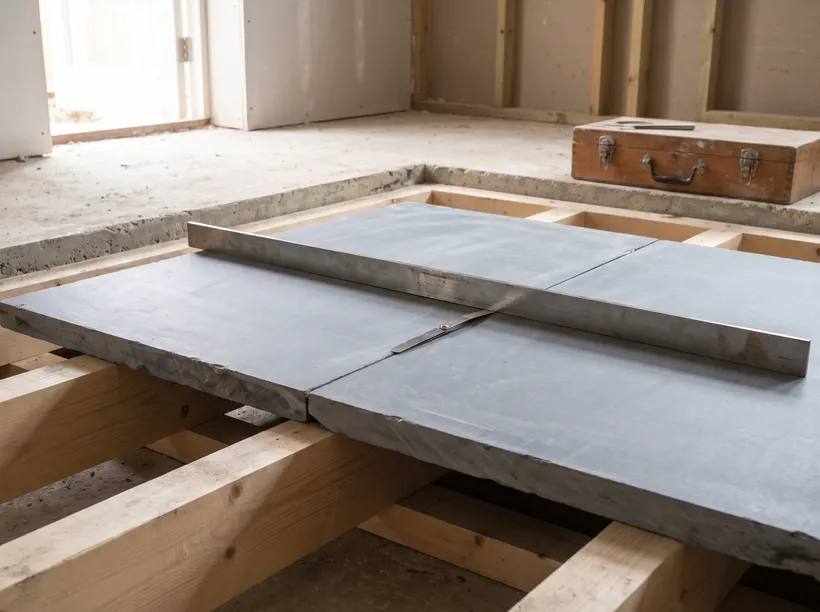

5. Level the bed. Lay the straightedge along each slab and across every joint, read the gap with feeler gauges, and shim under the supports or work the adjustable feet until every joint reads near zero. That near-zero read is the honest workshop target. No printed regulation number arrives to rescue the job.

6. Roll a ball on the bare slate before any cloth goes on. Send it slowly across every joint and watch for wobble or drift. Finding a low spot now costs a shim. Finding it under cloth costs the rails coming back off, which is the same work twice.

Two conditions stop the job rather than pause it. Slate that arrives cracked, chipped, or twisted is a stop-and-reassess situation, not something to improvise around on install day. So is a frame that still rocks after shimming. Pushing through either converts a component problem into a table problem, and components are always cheaper than tables.

First-time slate installation and any slate repair are reasonable things to hand to a professional fitter. The sequence reads easier than it executes, stone offers no practice swing, and one fitting visit costs less than a replacement slab plus a lost afternoon.

How Does Cloth Work Change How the Table Plays?

Good cloth work is invisible in the play and obvious in the misses: a bed that runs out true, cushions that return at expected angles, pockets that behave the same all evening. What decides it is mostly fixed before the first staple, in two choices: the direction of the nap and the evenness of the stretch.

Napped cloth runs one way, and snooker's rules pin the direction down. On a napped cloth, the smooth grain runs from the baulk end of the table toward the top end, where the black spot sits. At home, the consistency part of that rule does most of the work. The whole bed must run one way, because cloth mixed in directions makes the same stroke play differently depending on the direction of travel. Get the orientation right once and every later habit inherits it: brushing and ironing work from the baulk end toward the top, with the nap.

Tension is set by check, not by number. Stretch evenly from the middle of each edge outward, stop when the cloth feels taut rather than drum-tight, and verify with the honest test: roll a ball, listen to it, and look for wrinkles. A crisp, even run means leave it alone. Small wrinkles near a pocket or a corner release with a few staples, a local re-tension, and re-stapling. A puckered panel where cloth wraps into a pocket is not a compromise candidate. Redo it while you still own the afternoon.

I have helped re-cover a table in a garage, and the lesson that stuck was patience. Pull, staple, roll a ball, listen, adjust. The cloth rewards a slow afternoon and punishes a confident hour. Overstretching is the fastest way to learn that, because it distorts the nap and stresses the seams enough to show.

Which Finishes Survive a Man Cave?

The room does the choosing here. A table in a man cave gets knocked, takes cue traffic along the rails, collects drinks and dust, and still has to look like it belongs in the room. Finishes are judged on survival first and looks second, in that order.

Preparation sets the ceiling of any finish. Sand progressively with the grain, starting around 120 grit to remove machine marks, moving to 180, and finishing at 220 or 320 depending on the topcoat ahead. Dust ruins a clean finish, so wipe down with a tack cloth between grits and once more just before the finish goes on. If you stain, test on scrap of the same timber, and let it dry fully first, because the topcoat shifts the color in ways a bare sample hides.

For durability against knocks and cup rings, a hard-wearing clear topcoat is the straightforward choice, and it cleans without ceremony. An oil finish delivers a deeper, hand-rubbed look and asks for re-oiling when dings arrive. That is the real tradeoff: depth of appearance versus forgiveness of scrubbing. Gloss is the option to skip either way, because it throws late-night light straight into a player's eyes. Satin or matte is the sane default.

Coats go on thin and even, lightly sanded between them, as many as the product's instructions call for. In a garage-temperature room, finish cures slowly and fumes collect fast, so work with ventilation and follow the product's cure times rather than a hopeful schedule.

Protect everything already finished while working on what is not. Mask and cover the cloth entirely, because sanding dust and solvent mist both land on it and both stay. Keep any iron away from the cloth until every solvent on the table has fully cured.

Small details earn their keep at this stage. A light bevel on a sharp rail edge saves cue shafts and knuckles from the same corner. Levelers that are reachable but not glaring let a correction happen between games instead of becoming an event.

How Do You Prove the Table Is Game-Ready?

The checks below work identically whether you built the table or are accepting a fitter's invoice: inspect, read a finding, know the action. Nothing needs laboratory gear. A long straightedge, feeler gauges, a carpenter's square, a level, and a cue ball cover the lot.

Start with the frame, because everything else sits on it. The two diagonal measurements should match within a few millimetres, ordinary practice rather than a printed rule. Lay the straightedge across opposite rails and look for rocking, which is how twist announces itself. Shim the legs first, before anything else, because a frame that is not square invalidates every later read.

Re-check the slate the same way it was installed, straightedge along each slab and across every joint, feeler gauges reading the gap, near zero at every joint as the acceptance standard. The habit that keeps the read honest is simple: any bolt tightened after a check changes the next check, so re-level follows every re-tighten.

Cushions should sit fully against their rails with no visible gap along the toe or heel, and rebound stays consistent when a ball meets a rail at the same angle and speed. Inconsistent angles call for a reseat first and for replacement when a reseat does not change the story.

On pockets, the rules require one at each corner and one at the middle of each long side, which is the part the rulebook publishes. Opening dimensions come from the maker's specification sheet or from the fitter, and a number quoted from memory is how tables get argued about rather than fixed. For acceptance, compare opposite pockets for symmetry and watch a well-struck ball drop without rattling out.

Then the boring, decisive test: roll the cue ball from the center spot to every pocket and let it run to every rail. Slow, consistent movement means the bed agrees with itself. Drift, sudden speed changes, or unexplained hooks point at a low spot, a seam, or a cushion needing one of the sections above.

Afterward, watch the table through its first month of weather. Timber moves with the seasons, levelers walk, and cloth tension drifts. A re-check through the first humid-dry swing catches all of it while the fix is still shim work.

Escalate in that order: level and shims fix flatness complaints, cushion reseating or replacement fixes rebound complaints, and cracked slate is a professional repair or a replacement slab, never a weekend project. The checks exist to catch faults while they are cheap, which is the point of proving the table before anyone chalks up.

Build, Commission, Buy, or Maintain: Which Path Fits Your Room?

The honest ladder has four rungs, and most rooms fit one of the lower three.

Re-covering or re-cushioning a used table is the accessible entry point. The heavy, fragile decisions were made by someone else, and what remains is cloth, rubber, and bolts, which is exactly where the cloth method above pays off. Look over the bed before you commit, though, because the slate is the one part of a used table you cannot fix on a weekend.

Commissioning a table puts you in charge of the material choices while a fitter handles the slate. Show up on install day with the straightedge checks, roll the test ball before signing, and weigh in on cloth while the stretch is still within reach. You will also learn where the joints are in your specific table, which matters the next time it needs attention.

For a tight room, a 7 to 10 ft table is the correct answer rather than a compromise. The 10 ft class at 100 kg per slab is a genuinely different furniture conversation. Run the cue-swing check from the size section and let the room be the referee.

A ground-up full-size build is the top rung, and the three rungs below it are the syllabus. It is a serious workshop project with a crew on call for slate day, and the size and weight numbers at the top of this article explain the shortage of finished ones.

Whichever rung you take, the follow-through is one short list. Once a year, roll a ball across the bed, and if the roll argues, re-level before a game turns the argument into a grudge. Brush the cloth with the nap, working from the baulk end toward the top end. Condition the leather pockets so they stay soft and quiet. Watch cloth tension through the humid seasons, because it gives a warning before it quits.

So the useful order is fixed. Measure the room and the delivery route, run the cue swing, decide the rung, and only then start making calls. A table chosen after those checks is the one still playing true long after the novelty of owning it has worn off.
