Solar Roofs for Man Caves: Costs, Sizing and Incentives After the Federal Credit

A cave-scale solar roof is still a workable plan in 2026. It is a different plan from the one most solar articles still describe, because the 30% federal Residential Clean Energy Credit is no longer available for property placed in service after December 31, 2025. A system installed in 2026 gets zero federal residential credit, batteries included. If a project went into service during 2025, the credit can still be claimed on the 2025 return through Form 5695. Everyone else prices the whole thing gross and runs the payback on the levers that did not go anywhere: state and utility programs, what your utility pays for exported power, and how well the system is matched to the cave.

The math changed, not the physics. A roof full of panels produces the same power it produced last year, and the cave-specific reasons to want it are unchanged: paying the grid less to run a TV wall, an amp, a kegerator and compressor tools, and keeping the cave lit and the music on when the rest of the street goes dark.

What follows, in order, is the decision the credit leaves you with: what a garage-size system costs now, how to size it so nothing trips, which incentives and rate programs still exist, what your particular roof will actually give you, and how to build the thing so it can grow.

Key insights

• The 30% federal solar credit is gone for systems placed in service after December 31, 2025. A 2025 installation can still claim it.

• 2026 survey medians put residential installs around $2.58 to $3.25 per watt before incentives. Small garage systems can run higher.

• Size batteries from average cave load times wanted backup hours, then buy extra nameplate. Usable-capacity conventions vary by product.

• Judge the export credit rate, not the program name. Many markets pay less than retail for exported solar.

• Audit cave loads, time the project to the roof, and get three itemized quotes before signing anything.

Is solar roof hardware finally ready for a cave?

Ready, in the boring sense, and that is the answer you want. Nothing in a residential solar system requires an experimenter's patience anymore. The gear matured into infrastructure, and a cave owner's job is picking among four pieces that all carry room consequences.

Conventional panels are still the default, for good reasons. They cost less per watt than any alternative, install quickly on a simple roof, and most garage roofs do not owe the street a designer look. Solar shingles exist for the roof the neighbors do see. If your cave is a detached garage behind a house that faces a sidewalk, shingles buy appearance with money that would otherwise have bought capacity. That is a real tradeoff, not an upgrade.

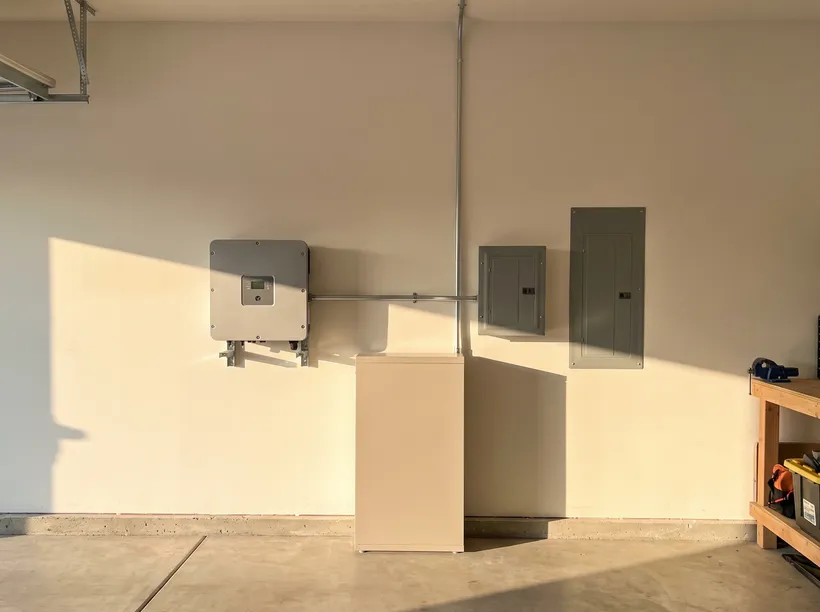

Batteries now fit a garage corner, and that single change is what makes the power-when-the-street-goes-dark promise real. They take floor space, and their cable route has to reach the inverter and your panel without parking itself behind the workbench. Decide where the box lives and where the conduit runs before the install crew shows up, because the answer is much harder to change afterward.

Inverters are the quiet decision a price quote will not make for you. One clean roof face with minimal shade suits a single string inverter, which is the cheaper option. A chimney shadow, a tree line at 4 p.m., or panels split across two roof faces push toward microinverters or power optimizers, so one shaded module taxes only itself instead of every module wired behind it.

Today's mainstream panels also convert meaningfully more of the same sunlight than the ones sold a decade ago, and most systems are built to start small and add to later. That modularity is what makes a modest first install a real plan rather than a consolation prize. No datasheet spec matters as much as fit, which the sizing section below handles.

What a cave-size solar roof costs in 2026

Honest pricing starts gross. Installed solar is quoted by the watt, and 2026 survey medians put U.S. residential installs around $2.58 to $3.25 per watt before any incentive. Treat that as a national pile of averages, not your price. Your number moves with your state, the condition and layout of the roof, how much chimney and vent the array has to dodge, and the installer market around you. Small systems also tend to price above the median, because fixed overheads such as permits, design and mobilization spread over fewer watts.

Run the rest as hypothetical arithmetic, so the shape of the decision is visible. At that band, a 3 kW garage system lands around $7,800 to $9,750 installed, and a 4 kW around $10,320 to $13,000. Batteries are extra, and a garage-corner battery with real capacity adds thousands, not hundreds, to any of those figures. None of it prices in a state rebate or a utility program that may shave its own share where you live.

Run the payback math yourself

Payback is a division you own, and nobody can finish it for you, because it needs two inputs only you have: a real quote and your utility's rate. The three-step version.

1. Take the annual production an installer predicts for your roof, in kWh.
2. Multiply it by what you pay per kWh, which gives the annual bill savings.
3. Divide the installed cost by that savings.

With placeholder numbers, a 3 kW system producing about 4,000 kWh a year at $0.15 per kWh saves around $600 a year, and a $9,000 gross system pays back in about 15 years before any local incentive. Change any single input and the answer moves a lot.

Collect three itemized quotes, and make sure at least one prices the roof work into the same bid. Shingle replacement discovered after the array is up gets paid twice, once in roofing labor and once in the panel removal and reinstallation nobody budgeted.

The ownership question also changed shape. A cash or loan purchase puts the full cost on you with no federal residential credit coming back, while a lease or a power purchase agreement is a different structure entirely. Sorting out whose federal treatment applies is not something to do from an article. Ask each provider directly how its own federal treatment shows up in the monthly payment, and see both structures quoted side by side.

The dependable ways down are boring, and they work. Time the project with the roof's remaining life so you are not paying to disturb new shingles. Start smaller and expand later rather than buying capacity you cannot use yet. Vet installers the way you vet tools, with itemized quotes that name permit and interconnection fees. And shrink demand first, because LED lighting and a heat pump in place of resistance heat cut the capacity you end up buying.

Sizing the system so the cave never drops or trips

Sizing is where solar projects are actually won or lost, and the sequence has a fixed order. Each step produces a number or a decision the next step needs.

1. Run the load audit. List everything the cave has to keep on during an outage and everything it runs on an ordinary evening. The cast is familiar: a TV wall around 200 watts, an amp at 150, a mini-fridge or kegerator at 150, lighting at 200, a mini-split peaking around 1,500 watts when it starts up, and compressor tools that spike harder than their nameplates suggest. Those are placeholder figures to read your own nameplates against, not specs. Two totals come out of it, and they answer different questions: average draw decides what the battery has to feed, peak draw decides what the breaker panel has to survive.
2. Size the battery from its role, then from hours. Decide first what the battery is for, because backup hours, evening peak-shaving and charging an EV from midday surplus lead to different right answers, and the classic sizing mistake is buying one box for all three jobs without knowing which one you meant. Then apply the rule of thumb: average draw times the hours you want. A cave drawing about 1 kW on average that should keep going for 5 hours points at roughly 5 kWh of battery. Buy meaningfully more nameplate than that bare result, as a planning convention rather than a chemistry claim. You never plan to discharge a battery to zero, and usable-capacity conventions differ by product and warranty.
3. Choose the inverter by roof reality. This is the shade decision from the hardware section, now made with your real roof in front of you. The check is physical: find the shadow that actually lands on your roof, note which module it sits on, and ask the installer what happens to the rest of the string. The answer you want is a number or a device choice, not reassurance.
4. Draw the electrical plan. Critical cave circuits go on a dedicated subpanel or behind a transfer switch, so backup power serves the cave instead of trying to energize the whole house. Conduit, junction boxes and labeling follow local code, permits get pulled, and the actual connections are licensed electrician work, full stop. Hand the installer your load list with one question attached: what stays on in an outage, and what isolates the cave from everything else.
5. Monitor and reschedule. An energy monitor shows production and consumption as they happen, and it turns ownership into planning data. Within a month you will know which load quietly eats your production. The load-priority habit is the payoff: the fridge and lights stay on, the sim rig waits. Scheduling the big draws into daylight hours is the everyday move that makes a modest array behave like a bigger one.

Incentives, financing and rate programs that still exist

Nothing in this section is guaranteed where you live, and that is the point of the checklist. These programs exist in many jurisdictions, they are all local, and the local rules are where the money is. The federal retreat touched none of them.

Start with the program types worth asking about.

• State and local rebates, sometimes a flat amount and sometimes tied to system size.
• Utility and municipal programs, including offers specifically for batteries.
• Sales and property tax exemptions, where your state keeps some solar costs out of the tax math.
• Net metering or a buyback rate, which credits power you send to the grid.
• Financing through a lender or a property-assessed program.

For net metering, read the export credit, not the program name.

In many markets the credit for an exported kilowatt-hour is less than the retail rate you pay, and a few pay barely anything. That one ratio changes where the value lives. If exports earn little, the money is in running the cave on your own power while the sun is out, which moves a battery from a nice extra to a working part of the plan. Your utility's rate schedule and the DSIRE database of state and local incentives are the two checks to run before signing anything.

PACE-style financing deserves its own pause. Property-assessed programs are repaid through the property tax bill, and that recorded obligation can complicate a sale or a refinance. The concern is not that it is a bad deal by default. It is that the obligation attaches to the house, and those terms should be read before signing anything at all.

The paperwork nobody else safeguards is yours. A good installer helps with rebate filings and permits and earns the fee doing it, but keep your own copies of invoices, permits, interconnection approvals, proof of payment and installation dates. Future-you will need them.

One timing warning fits here, learned from how these programs behave. Local programs and rate structures change quietly, and waiting months on quotes while a rebate fund drains is a real way to lose money you were counting on. Confirm what applies now, then confirm again before signing.

Homeowner association rules get their own line. Some states limit what an HOA can block, but the specifics live in your state law. Confirm before scheduling anything rather than assuming protection.

How much your roof will actually give, and what eats the output

Production starts with geometry. In general terms, a south-facing roof in the northern hemisphere with a tilt near your latitude gives the steadiest year-round output. East and west exposures still work. They just trade midday peak for morning and evening production, which can suit a cave that lives its real hours at night. Orientation you cannot change is handled with more panels or higher-output modules, not with regret.

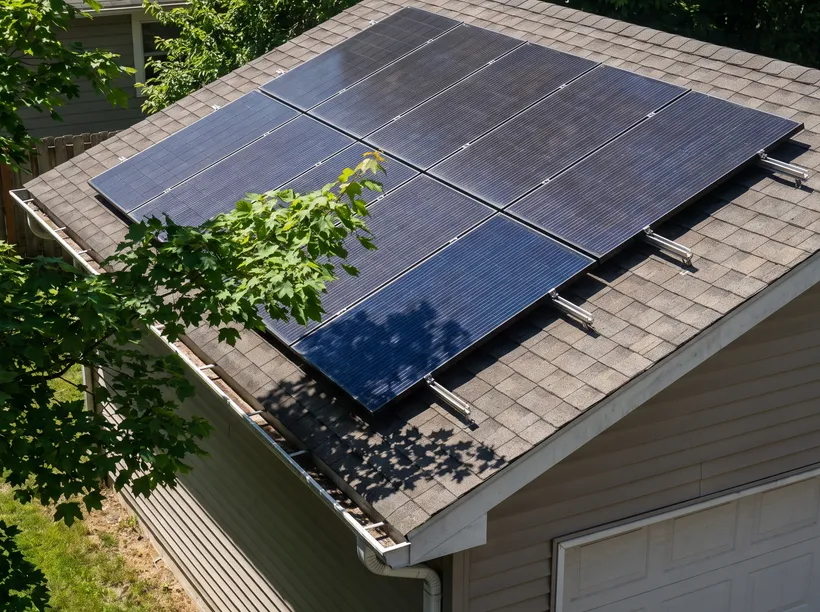

Then there is the most underrated force on any residential roof: shade. A tree limb, a vent pipe or a chimney shadow across one module can drag down the output of every module on the same string. Walk the surroundings at the hours that matter, roughly mid-morning through the afternoon, and note what casts a shadow and when. That one walk predicts more about your production than any datasheet.

Beyond what lands on the roof, expect the real number to sit below the brochure for reasons that are ordinary, not defects. Heat knocks output down on hot afternoons. Wiring and inverter conversion claim their share. Dirt does the rest. None of that warrants a decimal in planning. The useful check is empirical: compare what the system actually produced through its first summer against what the project predicted, and let the gap tell you whether cleaning, trimming or a service call comes next.

Shrinking demand before adding panels is the lever that compounds. An LED swap, a heat pump doing the heating and cooling instead of resistance elements, and moving compressor and EV charging into daylight hours each cut the load the system has to cover, which shrinks the array, the battery and the bill in one move.

Maintenance is a short routine a garage roof can actually follow. Clean the panels about twice a year, more when pollen, dust or bird droppings are the local problem. Trim the trees that will eventually reach the array. Inspect mounts and flashing once a year and again after a storm, because a mounting point is where roofs leak first. And check the inverter's app alerts early, when a dip is cheap to explain, rather than after output has slid for a season.

Plan it so the cave can grow

The first decision that dates everything else is not solar at all. It is the roof's remaining life. Find out, from a roofer or from the installers bidding the job, how many shingle seasons are left before signing. Pulling an array off to replace decking or shingles is the expensive way to learn about sequencing. Doing the roof work first, or deciding against solar this round, both beat paying twice.

If an EV is coming to the driveway or more tools to the wall someday, buy some headroom. A common planning cushion is 10 to 30 percent of capacity beyond what today's loads need, treated as a cushion, not a spec. The mistake worth naming is buying headroom and wiring nothing for it. Conduit runs and spare panel space installed while the walls are open beat a finished-wall demolition later, and a battery-expansion line item in the quote is worth screening for even when the battery itself is a later decision. That line item is how modularity turns into something real instead of a brochure word.

Full vehicle-to-home setups, where the EV battery feeds the house, are arriving as products and remain an outlook rather than something to price today. Nothing in the sizing above depends on one.

The order worth running before signing anything:

1. Run the load audit and hand the list to every installer who quotes.
2. Decide the battery role, backup, peak-shaving or EV surplus, before asking for battery pricing.
3. Learn the roof's remaining life and time the project around it.
4. Collect three itemized quotes with permits, interconnection fees and any expansion line visible.
5. Confirm your state and utility programs, and the export credit rate, while the quotes are fresh.

A cave that keeps its lights and music through a neighborhood outage, without tripping anything on the way, is a planning outcome, not a lucky one. The list above is the planning.
